UPS APC BYPASS PANEL 220-240V 50/60HZ OUT 1P+N+PE 63A
Διαθέσιμο
- Κωδικός
- 1.080.018
- Κατηγορία
- APC Tower
- Form Factor
- Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Max line current
- 63 A
- Input current limits
- 63 A
- Max current draw
- 63 A
- Net weight
- 20.91 kg
- Dimension
- 17.8 x 43.2 x 67.3 cm
UPS 1000VA TESCOM 1101ST NEOLINE ST PRO TOWER NEW
Διαθέσιμο
- Κωδικός
- 0.502.040
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 V / 220 V / 230 V / 240 Vac
- Voltage range
- 110 - 176 Vac (linear derating between 50% and 100% load ), 176 - 280 Vac (no derating), 280 - 300 Vac (derating 50%)
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- 25% +15% (settable)Total Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 V / 220 V / 230 V / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Waveform
- Sinusoidal
- Crest factor
- <= 2% (linear load); <= 5% (non-linear load)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Overload capability
- 105% - 125%: transfer to bypass in 1 min, 125% - 150%: transfer to bypass in 30 s, > 150%: transfer to bypass in 300 ms
- Mains mode
- >= 90%
- Battery mode
- >= 85%
- ECO mode
- >= 95%
- DC voltage
- 24 V
- Inbuilt battery
- 2 x12v 9Ah
- Charging current (max.)
- 1A
- Recharge time
- 8 h
- TYPE
- VRLA sealed lead acid maintenance free
- ALARMS
- On Utility failure / Low battery / Overload / UPS fault
- RS232 (standard) / USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows? 7 / 8 / 10
- SNMP (optional)
- Power management from SNMP manager and web browser
- Output Power Plugs
- 2 Schuko (3 IEC optional)
- Operating temperature
- 0 - 40
- Storage temperature
- from -40 to 70 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000m, derating 1% for each additional 100m
- IP rating
- IP20
- Noise level
- <= 50 dB (1m)
- Dimensions
- 144x336x214
- Packaged dimensions
- 232x417x318
- Net weight (kg)
- 9.5
UPS 1500VA APC SMART-UPS SMT1500RMI2U NO MASK/ NO LAN/ NO BATT CARTRIDGE
Περιορισμένα τεμάχια
- Κωδικός
- 1.080.106
- Κατηγορία
- APC Rack
- Type
- Line Interactive
- Form Factor
- 2U RACK
- Power Output Connectors
- (2) IEC Jumpers (Battery Backup), (4) IEC 320 C13 (Battery Backup)
- Power Capacity
- 1500VA
- Interface
- N/A
- Run Time (Up To)
- Typical recharge time 3 hour(s)
- Dimensions
- 1200 x 800 x 1000MM
- Weight
- 28.64 kg
UPS 1000VA 1101SRT TESCOM NEOLINE SRT PRO TOWER/RACK 900W NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.502.043
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 V / 220 V / 230 V / 240 Vac
- Voltage range
- "110 -176 Vac (linear derating between 50% and 100% load), 176 - 280 Vac (no derating), 280 - 300 Vac (derating50%)"
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- - 25% + 15% settableTotal Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 / 220 / 230 / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Frequency
- 45 - 55 Hz or 55 - 65 Hz (synchronized range); 50 / 60 Hz + - 0.1 Hz (battery mode)
- Waveform
- Sinusoidal
- Power factor
- 0.9
- Total harmonic distortion (THDv)
- <= 2% (linear load), <= 5% (non-linear load
- Crest factor
- 3:1
- Overload
- 105% - 125% for 1 min, 125% - 150% for 30 s, > 150% for 300 ms
- DC voltage
- 24 V (S)
- Inbuilt battery
- 2 x 9 A
- Charging current (max.)
- 1A
- Recharge time
- Standard model: 90% capacity restored in 4 hours, Long time model: depend on the capacity of battery
- Efficiency
- >= 90% (Mains mode), >= 85% (Battery mode), >= 95% (ECO mode)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Protections
- Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
- Communications
- RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
- Display
- LCD + LED
- Standards
- EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -25 to 55 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000 m, derating 1% for each additional 100 m
- IP rating
- IP 20
- Noise level at 1m
- <= 50 Db
- Dimensions
- 440 x 338 x 88
- Packaged dimensions
- 545 x 428 x 194
- Net weight (kg)
- 10.6
- Gross weight (kg)
- 11.3
UPS APC Back-UPS Pro BR24BPG External Battery Pack NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.500.572
- Κατηγορία
- Battery Pack
- Type
- N/A
- Form Factor
- Tower
- Power Output Connectors
- N/A
- Power Capacity
- 18000 mAh
- Interface
- N/A
- Run Time (Up To)
- N/A
- Dimensions
- 30.1 x 11.2 x 38.2 CM
- Weight
- 14.57KG
BATTERY PACK APC BR24BP TOWER WHITE FOR BACK-UPS RS/XS
Περιορισμένα τεμάχια
- Κωδικός
- 0.081.030
- Κατηγορία
- Batteries
UPS BATTERY EXTENSION MODULE EATON 9SXEBM48R 2U RACK
Περιορισμένα τεμάχια
- Κωδικός
- 1.080.114
- Κατηγορία
- Batteries
UPS 3000VA 1103ST TESCOM NEOLINE ST PRO TOWER NEW
Διαθέσιμο
- Κωδικός
- 0.502.042
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 V / 220 V / 230 V / 240 Vac
- Voltage range
- 110 - 176 Vac (linear derating between 50% and 100% load ), 176 - 280 Vac (no derating), 280 - 300 Vac (derating 50%)
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- 25% +15% (settable)Total Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 V / 220 V / 230 V / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Frequency
- 45- 55 Hz or 55 - 65 Hz (synchronized range), 50 / 60 Hz + - 0.1 Hz (battery mode)
- Waveform
- Sinusoida
- Crest factor
- 3:01
- Harmonic distortion
- <= 2% (linear load); <= 5% (non-linear load)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Overload capability
- 105% - 125%: transfer to bypass in 1 min, 125% - 150%: transfer to bypass in 30 s, > 150%: transfer to bypass in 300 ms
- Mains mode
- >= 92%
- Battery mode
- >= 87%
- ECO mode
- >= 97%
- DC voltage
- 72 V
- Inbuilt battery
- 6 x 12v 9Ah
- Charging current (max.)
- 1A
- Recharge time
- 8 h
- TYPE
- VRLA sealed lead acid maintenance free
- ALARMS
- On Utility failure / Low battery / Overload / UPS fault
- RS232 (standard) / USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows? 7 / 8 / 10
- SNMP (optional)
- Power management from SNMP manager and web browser
- Output Power Plugs
- 4 Schuko (6 IEC optional)
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -40 to 70 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000m, derating 1% for each additional 100m
- IP rating
- IP20
- Noise level
- <= 50 dB (1m)
- Dimensions
- 191x464x335
- Packaged dimensions
- 320x573x471
- Net weight (kg)
- 32
UPS 2000VA 1102SRT TESCOM NEOLINE SRT PRO TOWER/RACK NEW
Διαθέσιμο
- Κωδικός
- 0.502.044
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 / 220 / 230 / 240 Vac
- Voltage range
- "110 -176 Vac (linear derating between 50% and 100% load), 176 - 280 Vac (no derating), 280 - 300 Vac (derating50%)"
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- - 25% + 15% settableTotal Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 / 220 / 230 / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Frequency
- 45 - 55 Hz or 55 - 65 Hz (synchronized range); 50 / 60 Hz + - 0.1 Hz (battery mode)
- Waveform
- Sinusoidal
- Power factor
- 0.9
- Total harmonic distortion (THDv)
- <= 2% (linear load), <= 5% (non-linear load
- Crest factor
- 3:1
- Overload
- 105% - 125% for 1 min, 125% - 150% for 30 s, > 150% for 300 ms
- DC voltage
- 48 V (S)
- Inbuilt battery
- 4 x 9 Ah
- Charging current (max.)
- 1A
- Recharge time
- Standard model: 90% capacity restored in 4 hours, Long time model: depend on the capacity of battery
- Efficiency
- >= 90% (Mains mode), >= 85% (Battery mode), >= 95% (ECO mode)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Protections
- Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
- Communications
- RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
- Display
- LCD + LED
- Standards
- "EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1"
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -25 to 55 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000 m, derating 1% for each additional 100 m
- IP rating
- IP 20
- Noise level at 1m
- <= 50 Db
- Dimensions
- 440 x 430 x 88
- Packaged dimensions
- 545 x 560 x 201
- Net weight (kg)
- 18.7
- Gross weight (kg)
- 21.8
UPS HP BATTERY PACK R/T3000 G4 HV NO POWER CABLE MISSING MASK PART
Περιορισμένα τεμάχια
- Κωδικός
- 0.081.145
- Κατηγορία
- Batteries
UPS BATTERY EXTENSION MODULE EATON 9SXEBM72R 2U RACK
Περιορισμένα τεμάχια
- Κωδικός
- 1.080.116
- Κατηγορία
- Accessories
UPS 2200VA IBM 2U RACK BLACK 110VAC LINE INT NEW BATTERY GA
Περιορισμένα τεμάχια
- Κωδικός
- 0.080.824
- Κατηγορία
- Various UPS Rack
- Type
- Line Interactive
- Form Factor
- Rack 2U
- Power Output Connectors
- (8) IEC 320 C13, (2) IEC 320 C19
- Power Capacity
- 2200 VA
- Interface
- USB, RS-232, DB-9
- Run Time (Up To)
- 5 min at full load
- Dimensions
- 57.9 x 43.8 x 8.5 cm
- Weight
- 30.7 kg
UPS 3000VA 1103SRT TESCOM NEOLINE SRT PRO TOWER/RACK NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.502.045
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 / 220 / 230 / 240 Vac
- Voltage range
- "110 -176 Vac (linear derating between 50% and 100% load), 176 - 280 Vac (no derating), 280 - 300 Vac (derating50%)"
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- - 25% + 15% settableTotal Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 / 220 / 230 / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Frequency
- 45 - 55 Hz or 55 - 65 Hz (synchronized range); 50 / 60 Hz + - 0.1 Hz (battery mode)
- Waveform
- Sinusoidal
- Power factor
- 0.9
- Total harmonic distortion (THDv)
- <= 2% (linear load), <= 5% (non-linear load
- Crest factor
- 3:1
- Overload
- 105% - 125% for 1 min, 125% - 150% for 30 s, > 150% for 300 ms
- DC voltage
- 72 V (S)
- Inbuilt battery
- 6 x 9 Ah
- Charging current (max.)
- 1A
- Recharge time
- Standard model: 90% capacity restored in 4 hours, Long time model: depend on the capacity of battery
- Efficiency
- >= 92% (Mains mode), >= 87% (Battery mode), >= 97% (ECO mode)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Protections
- Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
- Communications
- RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
- Display
- LCD + LED
- Standards
- "EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1"
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -25 to 55 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000 m, derating 1% for each additional 100 m
- IP rating
- IP 20
- Noise level at 1m
- <= 50 Db
- Dimensions
- 440 x 560 x 88
- Packaged dimensions
- 545 x 690 x 201
- Net weight (kg)
- 26.8
- Gross weight (kg)
- 29.7
UPS HP BATTERY PACK R/T3000 G4 HV
Περιορισμένα τεμάχια
- Κωδικός
- 0.080.932
- Κατηγορία
- HP Compaq Rack
- Type
- Rackmount/Tower
- Form Factor
- Rack 2U
- Power Output Connectors
- N/A
- Power Capacity
- 3 VA
- Interface
- N/A
- Run Time (Up To)
- N/A
- Dimensions
- 86 x 647 x 441 mm
- Weight
- 39500 g

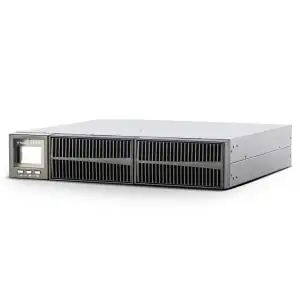

UPS 2000VA 1102SRT TESCOM PRIME Plus 2000W RACK TYPE LCD NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.502.122
- Κατηγορία
- Tescom UPS
- Nominal Voltage
- 200/208/220/230/240 VAC
- Voltage range
- 110-300 VAC +- 5% 50% load, 160-300 VAC +- 5% 100% load
- Frequency range
- 40 - 70 HzTotal Harmonic Distortion (THDi) <= 5% nominal input voltage
- Power factor
- >= 0.99 nominal voltage (100% load)
- Output Voltage
- 200*/208*/220/230/240 VAC
- AC Voltage Regulation
- = +- 1%
- Frequency Range
- 57 ~ 63 Hz or 47 ~ 53 Hz
- Current Crest Ratio
- 3:1 max
- Harmonic Distortion
- <= 2 % THD (Linear Load), <= 4 % THD (Non-linear load)
- Transfer Time
- AC mode to Battery mode= Zero, Inverter to Bypass= 4 ms (Typical)
- Waveform
- Pure Sinewave
- Overload
- 110-130% 5 min / 130-140% 30 sec / >140% 1.5 sec to 100ms
- Outlets
- 8 x IEC 320 C13
- AC Mode
- >= 90% full charged battery
- ECO Mode
- >=96% @ full charged battery
- Battery Mode
- >= 88%
- Battery Type (VRLA)
- 12 V / 9 AH
- Numbers
- 6
- Typical Recharge Time
- 3 hours recover to 95% capacity for internal battery 2A charging current
- Charging Current
- Default 2A, max. 12A adjustable
- Charging Voltage
- 54.8 VDC -+ 1%
- Dimension, D x W x H (mm)
- 510 x 438 x 88
- Net Weight (without battery) (kgs)
- 9.4
- Net Weight (w/built-int battery) (kgs)
- 19.5
- Humidity
- 5-95 % RH , 0- 40 (non-condensing)
- Noise Level
- Less than 50dBA, 1 Meter
- Altitude
- 10% de-rating for over 1000m (The altitude should not exceed 3000m)
- Smart RS-232/USB & Softwarel
- Supports Windows 2000/2003/ XP/ Vista/ 2008/ 7/ 8, Linux and MAC
- Optional SNMPl
- Power management from SNMP manager and web browser
- EMC/safety
- EMC EN62040-2 C2 / EN 62040 - 1 / EN 62040 ? 3 / RoHS 2
UPS 3000VA APC SMT3000RMI2U RACK NO MASK
Περιορισμένα τεμάχια
- Κωδικός
- 1.080.096
- Κατηγορία
- APC Rack
- Type
- Line Interactive
- Form Factor
- Rack 2U
- Power Output Connectors
- 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
- Power Capacity
- 3000VA
- Interface
- DB-9 RS-232, SmartSlot, USB
- Run Time (Up To)
- N/A
- Dimensions
- 89.00 mm x 483.00 mm x 660.00 mm
- Weight
- 44kg
APC SYMMETRA RM 2kVA POWER MODULE (2kVA) TESTED GA
Περιορισμένα τεμάχια
- Κωδικός
- 0.081.111
- Κατηγορία
- Spare Parts
EXTERNAL RUNTIME MODULE (BATTERY PACK) HP R5500 XR-ERM RACK 3U NO MASK
Περιορισμένα τεμάχια
- Κωδικός
- 1.080.053
- Κατηγορία
- HP Compaq Rack
UPS 1101SRT TESCOM PRIME Plus 1KVA/1000W RACK TYPE LCD NEW
Αναμένεται
- Κωδικός
- 0.502.121
- Κατηγορία
- Tescom UPS
- Nomina voltage
- 200/208/220/230/240 VAC
- Voltage range
- 110-300 VAC +- 5% , 50% load, 160-300 VAC +-5% ,100% load
- Frequency
- 40Hz - 70Hz
- Power factor
- >=0.99 @ nominal voltage (100% load)
- Harmonic Distortion(THDi)
- <= 5% @ nominal input voltage
- Output Voltage
- 200*/208*/220/230/240 VAC
- Voltage regulation
- 1 +-
- Frequency (Synchronized Range)
- 57 - 63 Hz or 47 - 53 Hz
- Frequency Range (Batt. Mode)
- 50 Hz +- 0.1Hz or 60Hz +- 0.1Hz
- Waveform
- 4 sm
- Power factor
- 0.9
- Total harmonic distortion
- = 2 % THD (Linear Load), = 4 % THD (Non-linear load)
- Current Crest Ratio
- 3:1 (max.)
- Overload
- 110-130% : 5 min / 130-140%: 30 sec / >140% : 1.5 sec to 100ms
- Outlets
- 8 x IEC 320 C13
- Battery Type (VRLA)
- 2 x 12 V / 9 AH
- Typical Recharge Time
- 3 hours recover to 95% capacity for internal battery 2A charging current
- Charging current (max.)
- 1A
- Charging Current
- Default 2A, max. 12A adjustable
- Charging Voltage
- 27.4 VDC +- 1%
- Dimension
- 410 x 438 x 88
- Net Weight (without battery) (kgs)
- 6,6
- Net Weight (w/built-int battery) (kgs)
- 11,6
- Humidity
- 5-95 % RH , 0- 40°C (non-condensing)
- Noise Level
- Less than 50dBA @ 1 Meter
- Altitude
- 10% de-rating for over 1000m (The altitude should not exceed 3000m)
- Smart RS-232/USB & Software
- Supports Windows 2000/2003/ XP/ Vista/ 2008/ 7/ 8, Linux and MAC
- Optional SNMP
- Power management from SNMP manager and web browser
- EMC/safety
- EMC EN62040-2 C2 / EN 62040 - 1 / EN 62040 3 / RoHS 2
UPS 1106SRTXL TESCOM PRIME PLUS 6KVA/6000W NEW
Αναμένεται
- Κωδικός
- 0.502.119
- Κατηγορία
- Tescom UPS
- Nominal Voltage
- 200/208/220/230/240 VAC
- Voltage range
- 10~300VAC ± 3 % at 50% load 176~300VAC ± 3 % at 100% load
- Frequency range
- 46~54 Hz 50Hz / 56~64 Hz 60HzPhase Single phase with ground
- Power factor
- >= 0.99 full loadTotal Harmonic Distortion (THDi) <4% 100% Load, <6% 50% Load
- Output Voltage
- 200*/208*/220/230/240 VAC
- AC Voltage Regulation
- = +- 1%
- Frequency Range
- 46~54 Hz 50 Hz / 56~64 Hz 60 Hz
- Current Crest Ratio
- 3:1 max
- Harmonic Distortion
- <=1% THD (Linear Load), <= 4 % THD (Non-linear Load)
- Transfer Time
- AC mode to Battery mode= Zero, Inverter to Bypass= Zero
- Waveform
- Pure Sinewave
- Overload
- AC Mod 100%~110%: 10min / 110%~130%: 1min / >130% : 1sec, Battery Mode 100%~110%: 30sec / 110%~130%: 10sec / >130% : 1sec
- AC Mode
- 94%
- ECO Mode
- 98,50%
- Battery Mode
- 92%
- Battery Type (VRLA)
- Depending on applications
- Numbers
- 16-20**
- Typical Recharge Time
- 9 hours recover to 90% capacity
- Charging Current
- 4.0 A
- Charging Voltage
- (13.65VDC x battery number) +- 1%
- Standard Model Dimension, D x W x H (mm)
- 610 x 438 x 88 [2U]
- Net Weight
- 17 kg
- Humidity
- <95 % RH 0- 40 (non-condensing)
- Noise Level
- Less than 55dBA 1 Meter
- Smart RS-232/USB & Softwarel
- Supports Windows 2000/ 2003/ XP/ Vista / 2008, Windows 7/8, Linux, Unix, and MAC
- Optional SNMPl
- Power management from SNMP manager and web browser
- EMC/safety
- EMC EN62040-2 C2 / EN 62040 - 1 / EN 62040 3 / RoHS 2
