ModelTM-1901

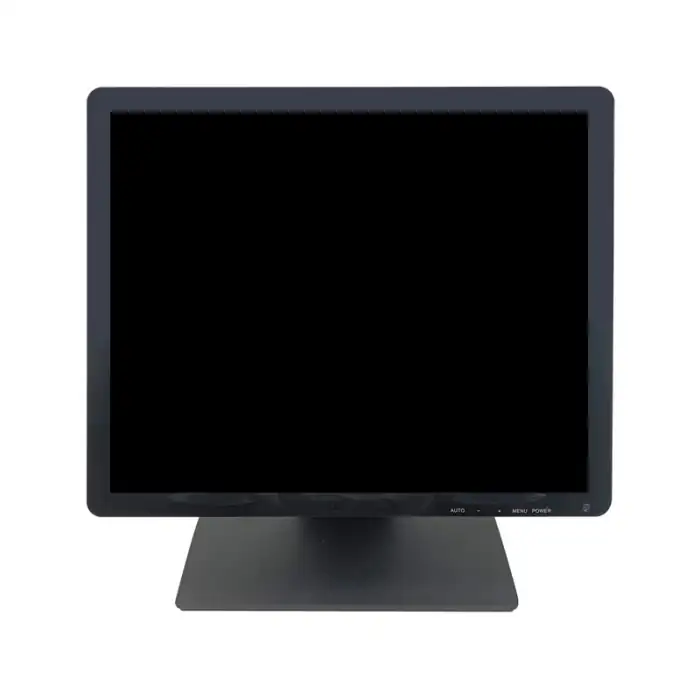

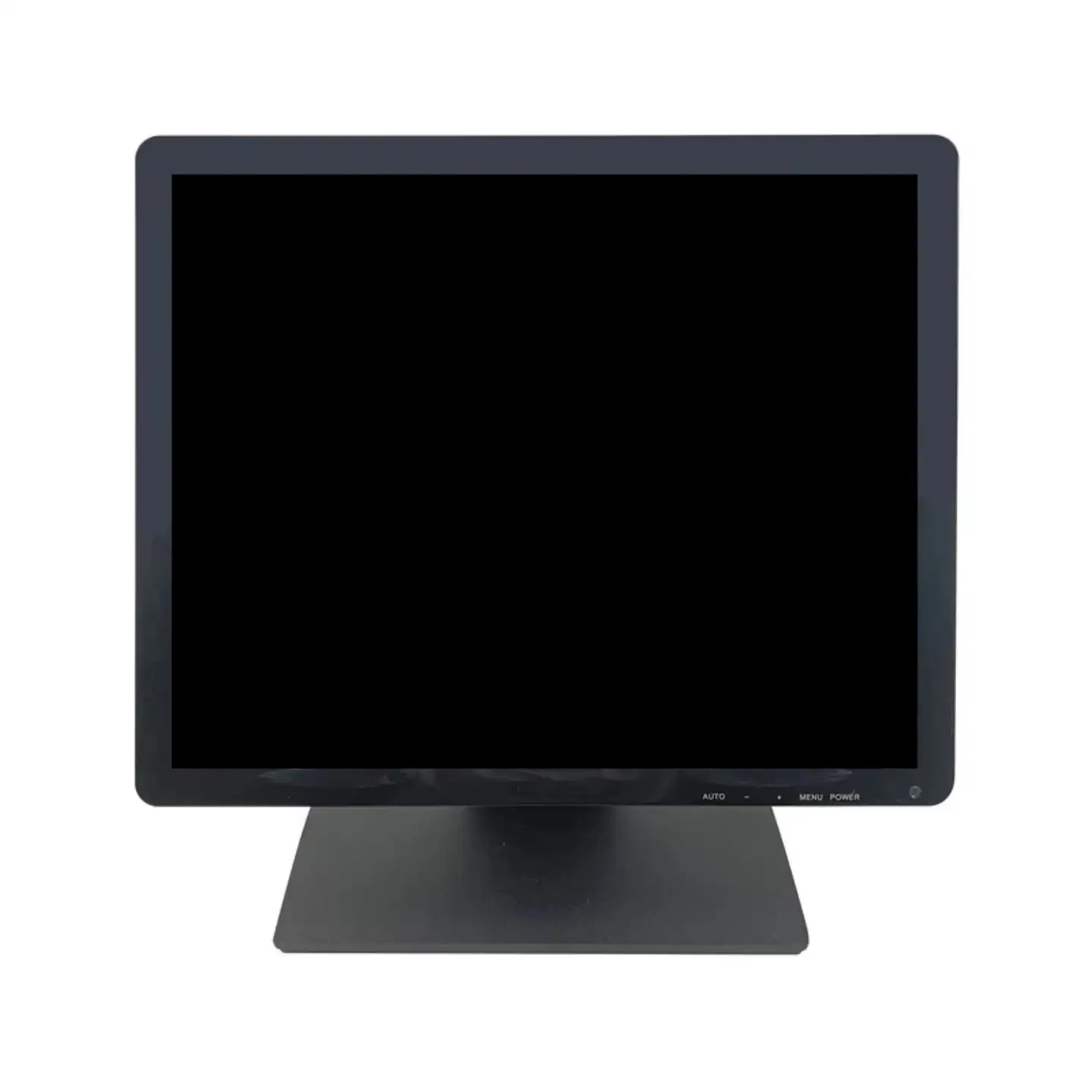

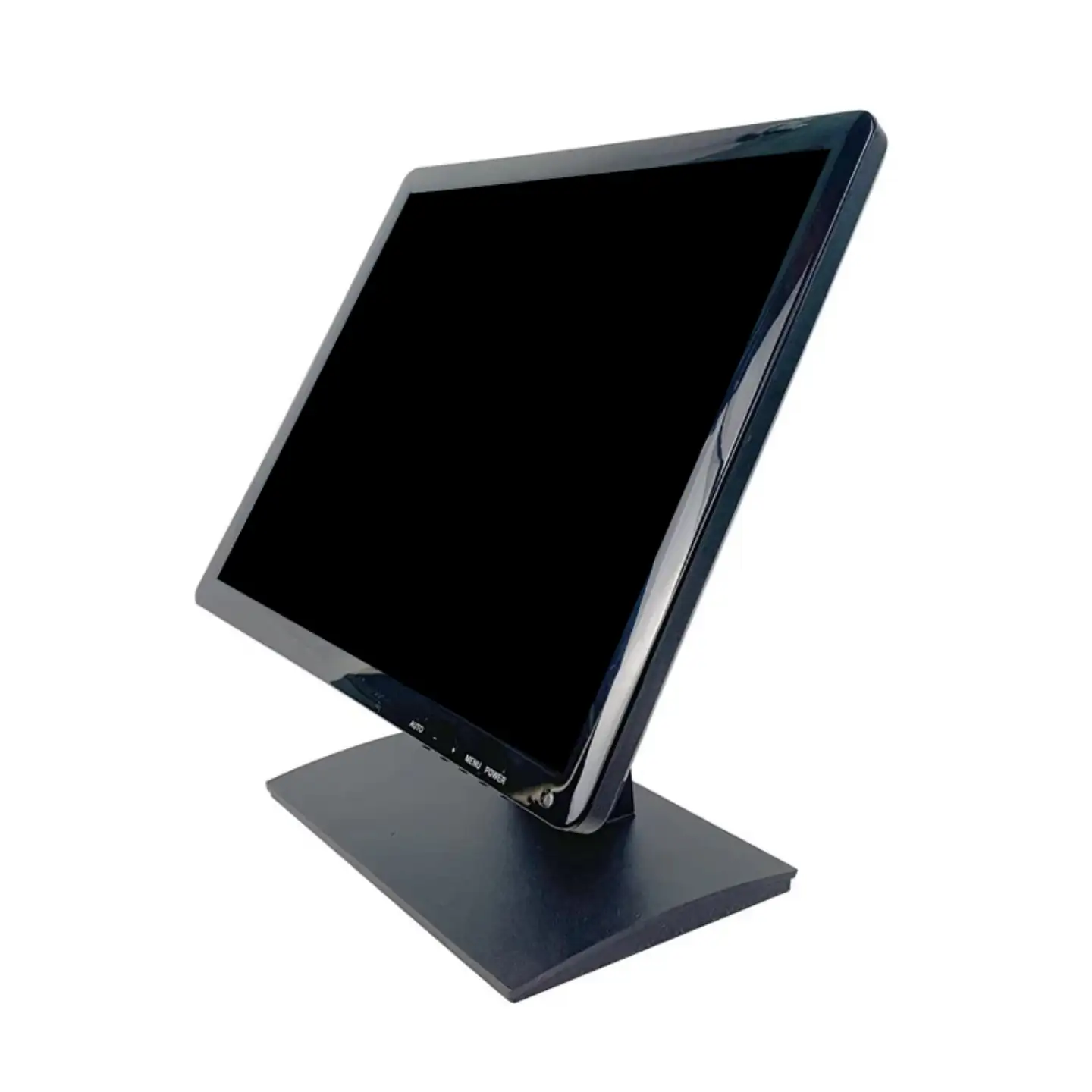

Name19 inch touch screen display
ColorWhole black color machine usually
MaterialMetal base with plastic body

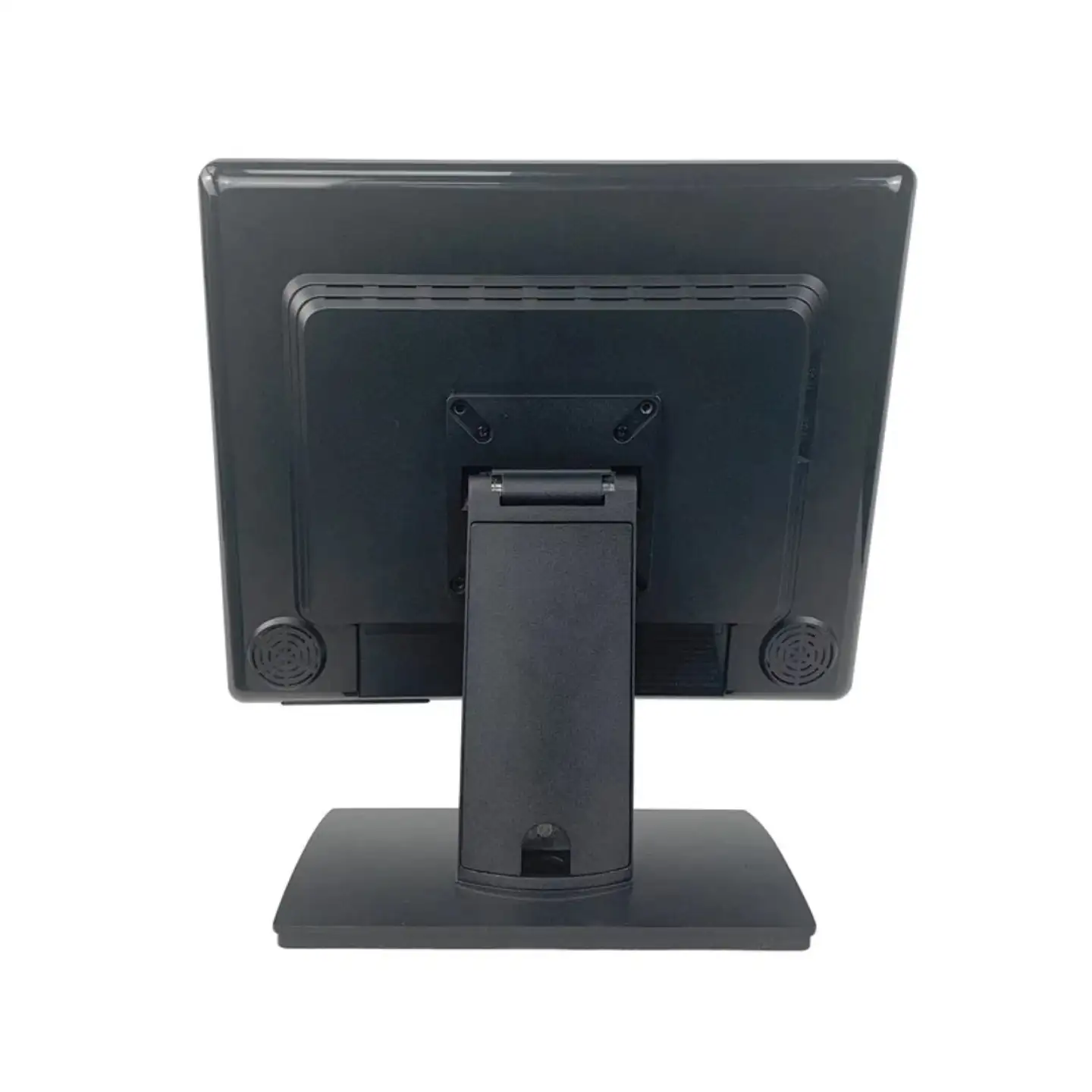

VESA75*75mm for wall mounting(need extral wall mounting bracket)
OSD LanguageSupport 8kinds of international languages
Display area376.32(W)×301.056(H) mm
Pixel pitch0.294*0.294
Aspect ratio4:3
Resoluiton1280*1024
Brightness300cd/m2
Contrast1000:1
Display color16.7M
View angleHorizon: 170; Vertical: 160
Response time5ms
Touch screen5-wire resistive touch panel
StructureITO Film and ITO Glass FIT
surface treatmentFog surface, anti-glare
Responding speed<5ms
Surface hardnessPencil hardness:3H
Total light transmittanceUp to 85%
Touch life>35000000 times
InterfaceVGA - HDMI
Side key functionAuto, Menu,Up,Down,Power Swicth
Operating temperature0 to 40 degrees centigrade
Storage temperature-10 to 60 degrees centigrade
Working humidity10%~80% No condensation
Storage humidity10%~90% No condensation
Package with foam inside570*130*500mm/7.5kg
5 in 1 carton570*490*500mm/28kg
Power adapter110-240V/50-60HZ AC power input ,DC12V/4A output adaptor
CablePower cord compatible with USA /EU / UK etc and customized available,USB cable for touch,VGA cable(HDMI cable for option)
Touch relatedTouch pen,driver disk
CertificationCE,ROHS,CCC,FCC
